Optima and Pro Urine Analyzers
Features:

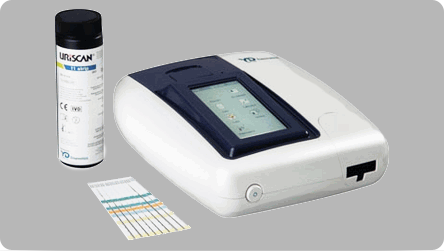

UriScan Optima
- 36 tests per hour routine mode capacity
- 300 tests per hour quick mode capacity (Results within 6 seconds!)
- TFT LCD display with touch screen
- CLIA Waived
- Sleek, compact design
- 2000 test memory capacity
- High-speed thermal printer
- For use with UriScan 10SGL, 10ACR, 6L, 2ACR and other UriScan urine test strips
- EMR compatible
UriScan Pro
- 720 tests per hour
- Strip holder automatically advances strip
- 5-second measurement cycle
- 7-inch TFT LCD display with touchscreen
- 3000 test memory capacity
- High-speed thermal printer
- For use with UriScan 10SGL, 10ACR, 6L, 2ACR and other UriScan urine test strips
- EMR compatible
Specifications
| UriScan Optima | UriScan Pro | |
|---|---|---|
| Type of Product | Semi-automated Urine Chemistry Analyzer | Semi-automated Urine Chemistry Analyzer |
| Model Name | UriScan Optima | UriScan Pro |
| Dimensions | ||
| Size | 8.3"(W) x 9.4"(D) x 3.5"(H) | 18.3"(W) x 17.3"(D) x 9.7"(H) |
| Weight | 2.1 lbs | 15.4 lbs |
| Operating Conditions | ||
| Temperature | 10°C ~ 40°C (50°F ~ 104°F) | 20°C ~ 28°C (68°F ~ 82°F) |
| Humidity | 10% ~ 70% | 10% ~ 70% |
| Storage Conditions | ||
| Temperature | 0°C ~ 40°C (32°F ~ 104°F) | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 10% ~ 85% | 10% ~ 85% |
| Measurement Method | ||
| Type | Reflectance photometers | Reflectance photometers |
| Test Capacity | 36 tests/hour in routine mode 300 tests/hour in quick mode | 720 tests/hour |
| Measurement Cycle | Routine Mode: 100 sec Quick Mode: 6 sec | 5 Seconds |
| Memory Capability | 2000 Tests | 3000 Patient Records 1,000 control data 30 calibration data |
| Reader Head | CCD Color Image Sensor | CCD Color Image Sensor |
| Result Display | 4.3" TFT LCD | 7" TFT LCD |
| Types of Strips Used | Multiple urine strips, including UriScan 10SGL, 10ACR, 2ACR, and 6L | Multiple urine strips, including UriScan 10SGL, 10ACR, 2ACR, and 6L |
| Ratios | Calculates albumin-to-creatinine ratio (ACR) | Calculates albumin-to-creatinine ratio (ACR) |
| Printer | High Speed Thermal-Printer 203dpi (8dots/mm) | High Speed Thermal-Printer 203dpi (8dots/mm) |
| Host Communication | LIS/EMR Compatible | LIS/EMR Compatible |
| Peripherals | Bar Code Reader | Bar Code Reader |
| Regulatory Approvals | CE, FDA 510(k), CLIA Waiver | CE, FDA 510(k), CLIA Moderate |
Strips Available for Analyzers
| Item No. | Test | Blood | Bilirubin | Urobilinogen | Ketones | Protein | Nitrite | Glucose | pH | Specific Gravity | Leucocytes | Microalbumin | Creatinine | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U12 | 4 Hemo GPH Strip | Yes | Yes | Yes | Yes | 100’S | ||||||||
| U22 | 5 HemoketoGPH Strip | Yes | Yes | Yes | Yes | Yes | 100’S | |||||||
| U25 | 6L Strip | Yes | Yes | Yes | Yes | Yes | Yes | 100’S | ||||||
| U39 | 10SGL Strip | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | 100’S | ||
| U64 | 2ACR Strip | Yes | Yes | 25’S | ||||||||||
| U62 | 10ACR Strip | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | 100’S |
